Power supply PCB layout is one of the most critical aspects of switching converter design. A poorly executed PCB layout can turn a theoretically perfect power stage into an EMI nightmare, a thermal failure, or an unstable regulator. This comprehensive guide covers AC-DC converters, DC-DC converters, and digital power supplies, providing actionable PCB layout rules that directly impact efficiency, reliability, and EMC compliance.
AC-DC Switching Power Supply PCB Layout
AC-DC converters transform mains AC voltage (85–264 VAC) into regulated DC outputs (5V/12V/24V/48V). The topology typically includes a rectifier bridge, PFC stage, main power converter (flyback/forward/LLC), and synchronous rectification. Every stage demands careful PCB layout attention.
1. Safety Clearances & Isolation
PCB layout for AC-DC designs begins with safety.
- Creepage distance between primary (high-voltage AC) and secondary (low-voltage DC) sides: ≥8 mm for reinforced insulation.
- Electrical clearance between primary and secondary: ≥6 mm.
- Optocouplers, transformers, and Y-capacitors bridge the isolation barrier. Route them across the isolation slot to maximize effective distance.
- Place fuses, varistors, and X-capacitors immediately adjacent to the AC input connector—minimize unprotected trace length.
2. PFC & EMI Filter Placement
- Position the EMI filter (common-mode choke + X-cap + Y-cap) as close as possible to the power inlet. Shorten the noise source-to-filter path to minimize conducted EMI.
- PFC inductors and boost diodes generate significant heat. Keep them away from electrolytic capacitors and other thermally sensitive components.
- Connect filter capacitor ground terminals directly to chassis ground, not signal ground, to shunt common-mode noise to earth.
3. High-Voltage & High-Current Loops
- Minimize loop area for the rectifier-to-PFC inductor and main switch-to-transformer paths. Large di/dt loops are the primary source of radiated EMI.
- High-voltage electrolytic capacitors (400–450 V) require thermal derating. Position them away from heat sources and include a bleeder resistor for safety discharge.
- Power ground (PGND) and signal ground (SGND) must connect at a single point to prevent switching noise coupling into control circuitry.
4. Transformer & Magnetic Design
- Inter-winding insulation: Use ≥3 layers of insulation tape between primary and secondary windings to pass Hi-Pot testing (3 kVAC/60 s).
- Magnetic core grounding: Ground the transformer core to prevent floating radiation. Keep the air gap away from windings to avoid edge-flux losses.
- Place leakage energy absorption circuits (RCD/TVS) immediately adjacent to transformer pins to minimize parasitic inductance.
5. Thermal Management & Enclosure Design
- Power semiconductors (MOSFETs, rectifier bridges, PFC diodes) must interface with the metal enclosure through thermal pads for heat sinking.
- When the enclosure is metal, design grounding springs and EMC shielding continuity into the PCB layout to maintain a continuous Faraday cage.

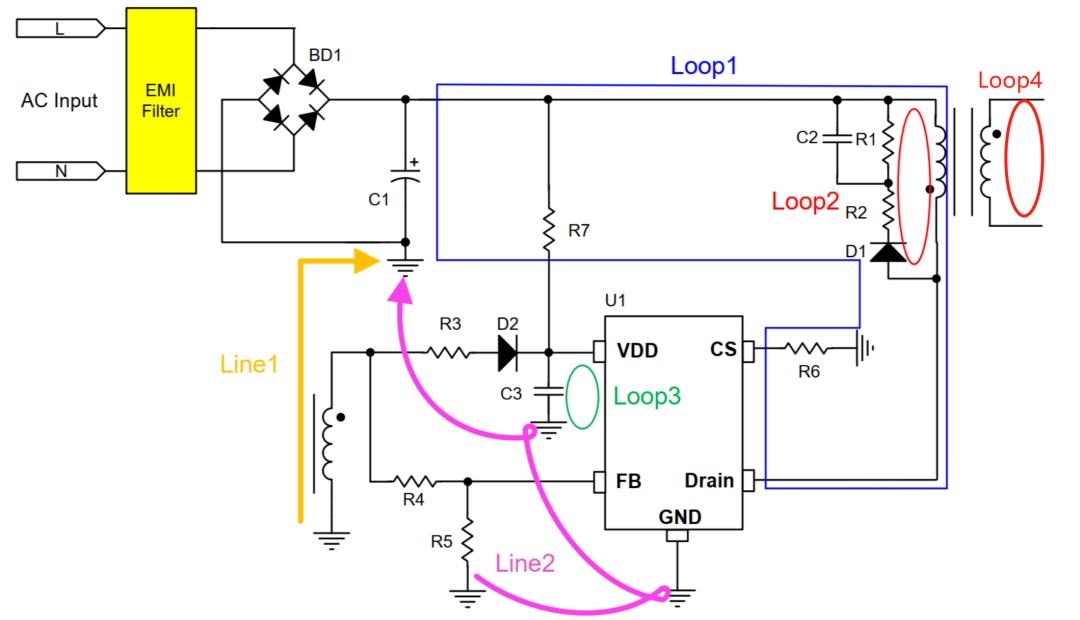

（AC-DC Power Supply PCB Layout）
DC-DC Switching Power Supply PCB Layout
DC-DC converters step down (or up) an existing DC voltage (48 V/400 V battery or bus) to lower rails (3.3 V/5 V/12 V). Topologies include non-isolated (Buck/Boost) and isolated (flyback/forward/LLC/phase-shifted full-bridge) designs.
1. Minimize Switching Loop Area
The input capacitor → high-side MOSFET → low-side MOSFET (or diode) → input capacitor loop is the dominant EMI radiator. In your PCB layout:
- Keep this loop area < 25 mm²—this is non-negotiable for passing EMC tests.
- Minimize the switch node (SW) copper area and keep it far from sensitive analog circuits. Use a star grounding topology to isolate noise.
2. Input & Output Capacitor Placement
- Place input ceramic capacitors (100 nF–10 μF) directly adjacent to the MOSFET drain/source terminals to suppress high-frequency ripple.
- Form a compact LC filter with the output inductor and capacitor. Route the capacitor ground through vias directly to the ground plane.
- For high-current paths, use 2 oz copper or thicker, or parallel multiple layers to reduce conduction loss.
3. Synchronous Rectification & Gate Drive
- Synchronous rectifier MOSFET gate drive traces must be short and wide. Keep them away from the SW node to prevent Miller-effect false turn-on.
- Current sense resistors (shunts) require Kelvin (4-wire) connections. Sense traces must originate from the center of the resistor pads to eliminate parasitic voltage drops.
4. Multi-Phase Parallel & Current Sharing
For CPU/GPU multi-phase VRMs:
- Symmetrical inductor placement across all phases. Current sense traces must be length-matched to ensure accurate per-phase current measurement.
- Maintain adequate spacing between phases to prevent magnetic coupling that causes current imbalance.
5. High-Voltage Isolation (Isolated DC-DC)
- Primary-to-secondary spacing and transformer insulation requirements mirror AC-DC standards.
- Route feedback optocouplers or digital isolators across the isolation barrier. Shield feedback traces with ground stitching on both sides.

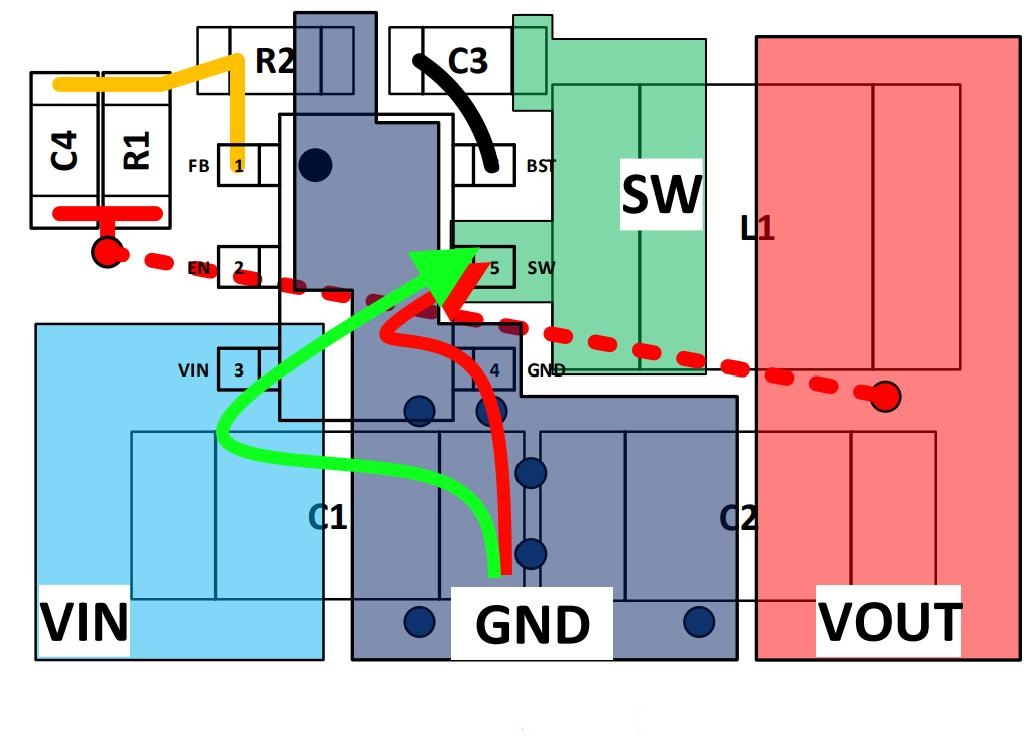

（Buck Converter PCB Layout）
Digital Power Supply PCB Layout
Digital power replaces traditional analog PWM controllers with MCUs, DSPs, or FPGAs, enabling adaptive loop compensation, dynamic voltage scaling, fault diagnostics, and digital communication (PMBus/AVS). The PCB layout challenges shift from pure power to mixed-signal integrity.
1. Analog vs. Digital Ground Partitioning
- Strictly partition the high-frequency digital clock domain (>100 MHz) from analog sampling circuits (voltage/current sensing).
- ADC sampling inputs (VSENSE/ISENSE) require shielded routing, kept far from digital switching noise. Maintain differential symmetry from the sense resistor to the ADC.
- Connect analog and digital grounds under the controller IC at a single point, or isolate them with a ferrite bead/0Ω resistor.
2. Sampling Accuracy & Noise Suppression
- Place voltage divider resistors (1% or 0.5% precision) close to the controller. Keep traces short and wide to minimize noise pickup.
- Current sensing (shunt/Hall sensor/inductor DCR) requires front-end RC low-pass filtering with a cutoff frequency < 1/10 of the switching frequency.
- Kelvin sense connections must sample directly across the output capacitor terminals—do not include PCB trace resistance in the measurement path.
3. Communication Interface Isolation
- When PMBus/I²C/SPI lines cross an isolation boundary, use digital isolators (e.g., ISO1541) or optocouplers.
- Keep communication traces away from power switching nodes. Place pull-up resistors close to the controller to prevent excessive bus capacitance from degrading rise times.
4. Dynamic Response & Loop Stability
- Digital compensation algorithms must match actual LC filter parameters. Validate with load transient testing to verify voltage droop and recovery time.
- Output capacitor ESR directly impacts loop phase margin. Select low-ESR ceramic or polymer capacitors for stable operation.
5. Software & Hardware Co-Design
- Digital power fault protection (OVP/OCP/OTP) is implemented in firmware. Include a watchdog timer and redundant sampling channels.
- Reserve debug interfaces (JTAG/SWD) in the PCB layout for firmware updates and parameter tuning during development.
A well-designed power supply PCB layout is the cornerstone of building a reliable, efficient, and EMC-compliant switching converter. By applying these PCB layout best practices in your design, you will reduce the number of prototype iterations, achieve EMC certification faster, and deliver a power supply that operates reliably across the entire load and temperature range.
