Surface Mount vs Through Hole Assembly: How to Choose the Right PCB Assembly Method

by: Jul 08,2026 1488 Views 0 Comments Posted in PCB Design & Layout

smd vs tht surface mount vs through hole smd vs through hole surface mount through hole

In PCB assembly, SMT (Surface Mount Technology) and THT (Through-Hole Technology) are the two most widely used component mounting methods. The differences between surface mount vs through hole assembly mainly lie in component placement methods, electrical performance, mechanical reliability, manufacturing cost, and application scenarios.

Neither SMT nor THT is universally better than the other. The right choice depends on product requirements, including size limitations, operating environment, production volume, and performance expectations.

This article explains the fundamentals, advantages, and limitations of SMT vs through hole assembly, while also covering typical applications and PCB design considerations for SMD vs THT components. It aims to help hardware engineers select the most suitable PCB assembly solution for different projects.



What Are SMT and THT?

In PCB manufacturing and assembly, SMT and THT are the two fundamental technologies used to attach electronic components to printed circuit boards. The key difference between them is how components are mechanically mounted onto the PCB, which directly affects PCB layout, electrical performance, reliability, and manufacturing processes.


SMT (Surface Mount Technology)

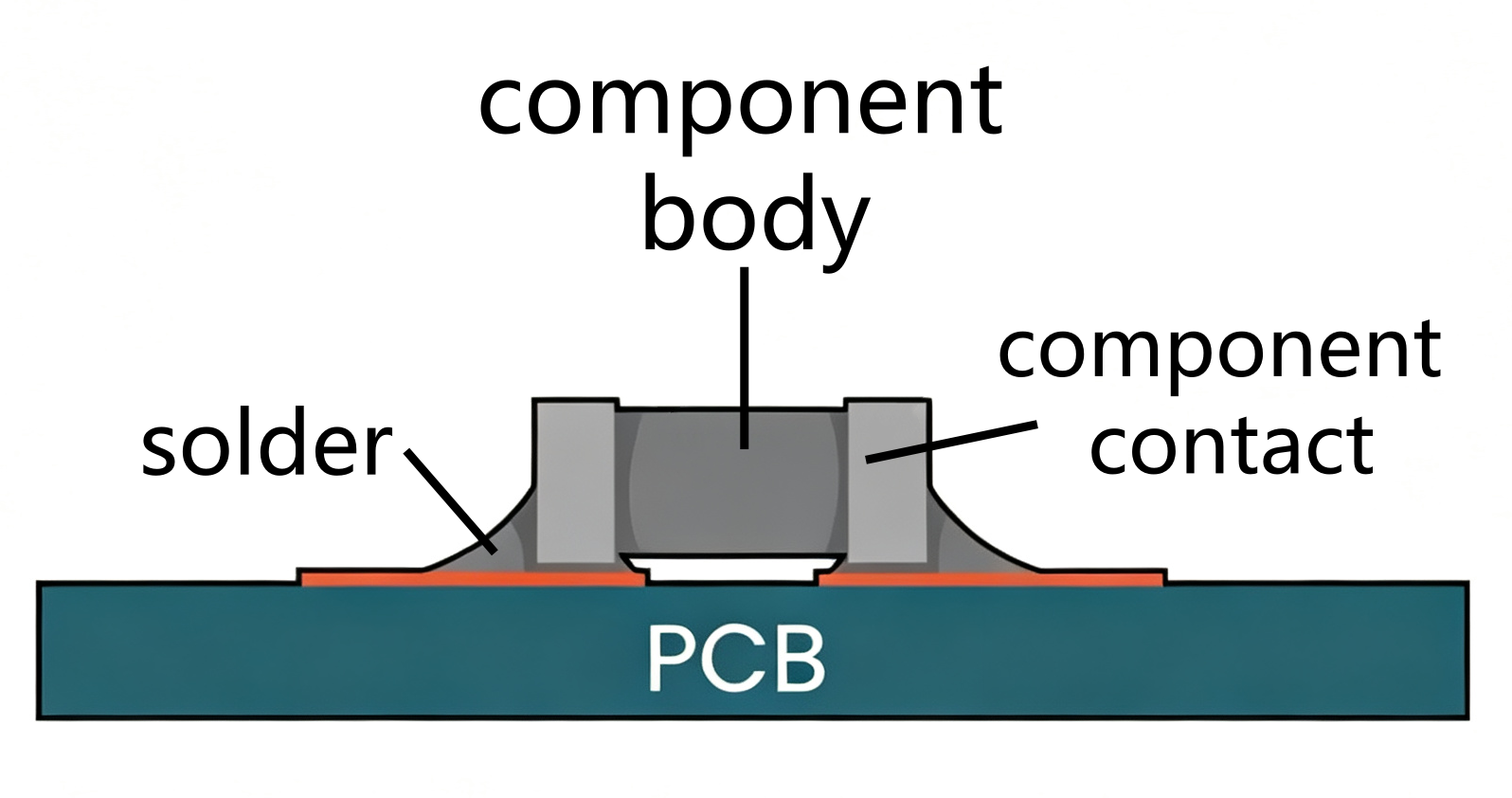

SMT is a PCB assembly method where electronic components are mounted directly onto the PCB surface without drilled holes.

During assembly, SMD components are placed using automated pick-and-place machines after solder paste printing, followed by reflow soldering.

Because SMT supports compact packages, double-sided assembly, and high-density layouts, it is widely used in smartphones, wearable devices, IoT modules, and high-speed electronic products.


THT (Through-Hole Technology)

THT uses components with leads that pass through plated holes in the PCB and are soldered on the opposite side.

The mechanical connection created by through-hole leads provides excellent strength and reliability, making THT suitable for power devices, connectors, relays, and industrial equipment.



SMT vs Through Hole: Key Differences and Advantages

The differences between SMT vs through hole assembly can be evaluated from several engineering perspectives, including electrical performance, mechanical reliability, thermal management, manufacturing cost, and repairability.


1. Electrical Performance and Signal Integrity

SMT components have shorter connections between the component and PCB, resulting in lower parasitic inductance and capacitance. This makes SMT ideal for high-speed digital circuits, DDR memory, RF modules, and communication systems where signal integrity is critical.

Compared with SMT, THT components have longer leads that introduce additional parasitic effects. Therefore, THT is generally preferred for power circuits, motor control applications, and designs where high-frequency performance is less critical.


2. Mechanical Reliability and Vibration Resistance

THT components generally provide better mechanical strength because their leads pass through the PCB and form a stronger physical connection.

This makes through-hole technology suitable for products exposed to vibration, mechanical shock, and temperature cycling, such as industrial controllers, automotive electronics, and power equipment.

SMT components rely on surface solder joints, which may experience fatigue under long-term mechanical stress.

For large packages such as MLCC capacitors and BGA devices, additional reinforcement methods, including underfill and adhesive bonding, can improve reliability.


3. Thermal Management and Power Handling

THT power components can transfer heat through larger leads and may be connected to external heat sinks, making them suitable for high-power applications.

SMT power devices mainly rely on copper areas, thermal pads, and thermal vias for heat dissipation. Proper thermal design is essential for high-power SMT assemblies.


4. Manufacturing Cost and Production Efficiency

SMT offers higher automation and better cost efficiency for medium and high-volume production through automated placement and reflow soldering.

THT usually requires more manual operations, but it remains suitable for prototypes, low-volume production, and products requiring easy maintenance.


5. Repair and Rework Considerations

THT components are easier to replace because their solder joints are accessible and can be repaired with standard soldering tools.

SMT packages such as BGA and QFN require specialized equipment for inspection and repair due to their small size and hidden solder joints. skills and equipment.



Choosing Between SMT and THT for Different Applications

The selection between SMT vs through hole depends on product size, electrical requirements, operating environment, production volume, and maintenance needs. In many cases, the best solution is not choosing one technology over the other, but combining both technologies in a single PCB assembly.


Consumer Electronics and High-Density Products: SMT Preferred

Consumer electronics such as smartphones, wearable devices, IoT modules, and communication products usually prioritize compact size, lightweight design, and high integration.

SMT supports high-density layouts, double-sided assembly, and automated production, making it the preferred solution for these applications.


Industrial and High-Power Applications: THT Advantages

Industrial power supplies, motor control boards, inverters, and heavy-duty equipment often require strong mechanical reliability and high current capability.

Connectors, relays, transformers, and power components are commonly assembled using THT because through-hole connections provide better mechanical strength and easier maintenance.


Automotive, Communication, and Control Systems: Mixed SMT + THT Assembly

For automotive electronics, industrial controllers, communication equipment, and power management systems, SMT and THT mixed assembly is often the most suitable solution.

High-density components such as MCUs, sensors, and communication ICs are typically assembled using SMT to improve integration and signal performance.

Meanwhile, connectors, terminal blocks, relays, and power devices are usually assembled using THT to enhance mechanical reliability and current-carrying capability.

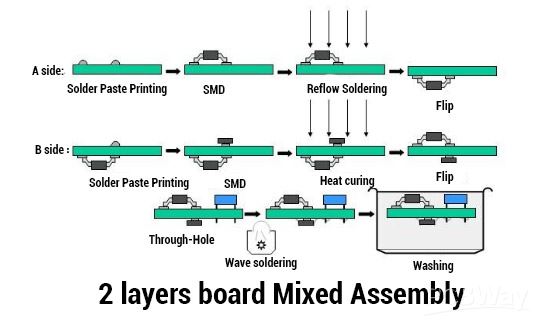

A typical mixed assembly process completes SMT first, including solder paste printing, component placement, and reflow soldering. THT components are then inserted and processed through wave soldering or selective soldering.

This hybrid approach combines the advantages of both technologies and is widely used in modern electronic products.



PCB Design Guidelines for SMT and THT Assembly

Selecting the right assembly method is only the first step. Proper PCB design is also essential to ensure good soldering quality, manufacturing efficiency, and long-term reliability.

Whether using SMT, THT, or mixed assembly, engineers should consider component placement, thermal management, inspection requirements, and soldering processes during the PCB design stage.


SMT PCB Design Considerations

  • Consider Inspection Requirements for Fine-Pitch Packages

For advanced SMD packages such as BGA and QFN, solder joints are hidden beneath the component body. Designers should consider inspection methods such as X-ray inspection during the manufacturing process to ensure soldering quality.

  • Optimize Thermal Design for Power Components

Power SMT components require proper thermal management. Adding thermal vias, increasing copper areas, and optimizing heat dissipation paths can help reduce operating temperatures and improve reliability.

  • Improve Reliability in Harsh Environments

For products exposed to vibration, shock, or temperature cycling, large SMD components such as MLCC capacitors and BGA packages may require additional reinforcement methods, including underfill or adhesive bonding.


THT PCB Design Considerations

  • Ensure Proper Hole and Lead Dimensions

For THT components, the PCB hole diameter should be slightly larger than the component lead diameter to ensure smooth insertion and reliable solder joint formation.

  • Increase Pad Size for High-Stress Components

Heavy-duty connectors and high-current terminals should use appropriately sized pads to improve solder joint strength and withstand thermal cycling.

  • Consider Routing Space in Multilayer PCBs

Large through holes can occupy valuable routing space on internal layers. In high-density multilayer designs, unnecessary large vias should be minimized to maintain routing flexibility.


Mixed SMT + THT Assembly Design Tips

When combining SMT and THT in a single PCB, the layout should consider both reflow soldering and wave/selective soldering processes.

Key design considerations include:

  • Separate SMT and THT areas based on the assembly process to simplify manufacturing.
  • Reserve sufficient spacing for component placement, soldering, and inspection.
  • Protect sensitive SMT components during wave soldering to prevent solder bridging or thermal damage.
  • Avoid unnecessary overlap between SMT and THT footprints to reduce assembly defects.

A well-designed mixed assembly layout allows manufacturers to achieve high component density while maintaining mechanical reliability.

If you need help with the design, PCBWay offers professional design services.



Conclusion

SMT and THT each have their own advantages, and the right choice depends on product requirements such as size, performance, reliability, and production volume.

SMT is ideal for compact, high-density, and high-speed electronic products, while THT remains a reliable choice for applications requiring strong mechanical connections and high current capability.

For many industrial, automotive, and communication products, SMT and THT mixed assembly provides a balanced solution that combines performance, reliability, and manufacturing efficiency.


PCBWay provides end-to-end manufacturing services—from PCB fabrication and component sourcing to SMT/THT assembly, inspection, and functional testing. By combining experienced engineering support with advanced production capabilities, PCBWay helps accelerate prototyping and ensure reliable mass production.
