In PCB design, the annular ring may seem like a small feature, but it directly affects electrical reliability, solder joint strength, and manufacturing yield. Insufficient annular ring width can lead to breakout, tangency, intermittent connections, and even complete circuit failure. This article explains annular ring fundamentals, sizing calculations, IPC requirements, design guidelines, and common failure modes to help engineers improve PCB reliability and manufacturability.
Designing annular rings is not simply a matter of following a formula. Hole registration tolerance, layer-to-layer alignment, fabrication capability, and PCB reliability requirements must all be considered during the design stage. Through PCBWay Design Service, our engineers regularly optimize via and pad structures to improve manufacturability and reduce the risk of breakout and soldering defects before production begins.
An annular ring is the circular copper area surrounding a drilled hole on a PCB pad. It is commonly used with plated through-holes (PTHs) and vias to establish reliable electrical and mechanical connections.
Vias provide electrical interconnection between PCB layers, while through-holes are used for mounting through-hole components. The annular ring serves as the transition area between the plated hole wall and the copper pad, ensuring both electrical continuity and mechanical stability.

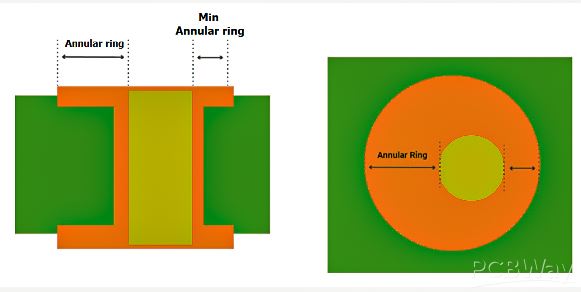

A complete annular ring structure consists of three primary dimensions:
The overall diameter of the copper pad, including both the hole and the surrounding annular ring.
The finished hole size created by mechanical drilling or laser drilling. The hole wall is plated to form a conductive pathway.
The radial distance between the edge of the drilled hole and the outer edge of the copper pad. This is the most critical parameter in annular ring design.
The industry-standard formula for calculating annular ring width is:
Annular Ring Width (W) = (Pad Outer Diameter (OD) − Drill Diameter (D)) ÷ 2
This calculation provides the nominal annular ring width. However, actual manufacturing involves drilling tolerance, layer registration variation, and copper etching deviations. Therefore, designers should always include additional margin beyond the theoretical value.
Different applications require different levels of reliability and manufacturability.
For household electronics and compact consumer devices, a minimum annular ring width of 0.10 mm is generally recommended. Minor tangency may be acceptable depending on product requirements.
Industrial control systems and communication equipment typically require a minimum annular ring width of 0.075 mm. Teardrop structures are often added in constrained layouts to improve reliability.

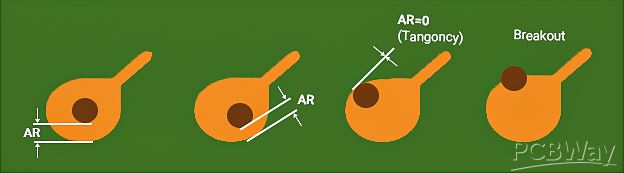

Medical devices, automotive electronics, aerospace systems, and military equipment require maximum reliability. Tangency and breakout defects are generally unacceptable.
Recommended minimum values:
Outer-layer annular ring: ≥ 0.05 mm
Inner-layer annular ring: ≥ 0.025 mm
Additional manufacturing tolerance should always be included.
Laser-drilled microvias use much smaller annular rings.
Typical recommendations include:
Standard HDI microvias: ≥ 0.025 mm
Ultra-high-density designs: ≥ 0.015 mm
These dimensions are generally reserved for advanced HDI manufacturing processes.
To withstand soldering stress and insertion forces, annular ring width should generally be 0.20 mm or larger.
For vias used only for electrical interconnection, annular ring size may be reduced but should never exceed the fabricator’s capability limits.
Because flexible circuits experience repeated bending stress, annular rings are typically increased by 20–30% compared to equivalent rigid PCB designs. Teardrop reinforcement is strongly recommended.
Effective annular ring PCB design must account for both electrical performance and manufacturing capability.
Drill wander, layer registration error, and copper etching variation are unavoidable manufacturing factors. Designers should generally add 0.03–0.05 mm of extra annular ring margin beyond calculated values.
Mechanical drilling typically has larger positional tolerances and therefore requires larger annular ring allowances.
Laser-drilled microvias offer higher accuracy and may use smaller annular rings.
IPC product classifications establish different acceptance criteria:
Wave soldering and reflow soldering introduce thermal expansion and contraction. For high-current vias and large through-holes, increasing annular ring width by approximately 10% can improve long-term reliability.
✅️ Follow IPC Class requirements
✅️ Reserve drilling tolerance

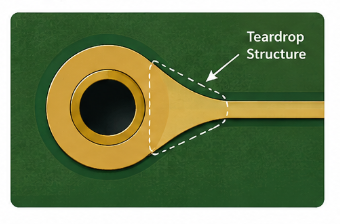

✅️ Add teardrops in critical areas
✅️ Increase annular ring for high-current holes
✅️ Verify breakout risk during DRC
✅️ Confirm fabricator capability before finalizing dimensions
✅️ Review inner-layer annular ring registration
Annular ring optimization should be considered together with overall PCB layout rules, including drill sizing, via structures, trace routing, and manufacturability checks. For a broader overview, see our Complete PCB Design Guidelines: Layout, Routing and Manufacturing Best Practices.
Although annular rings occupy only a tiny area of a PCB, they play a critical role in electrical connectivity, solderability, and long-term reliability. Proper annular ring sizing, tolerance allocation, and teardrop reinforcement can significantly reduce breakout defects and improve manufacturing yield.
At PCBWay, our PCB Design Service team helps engineers optimize pad stacks, via structures, via annular ring dimensions, and overall manufacturability requirements before fabrication, ensuring reliable designs from prototype to mass production.
