As medical electronics continue to evolve toward smarter, smaller, and more connected devices, medical PCB design has become increasingly critical to ensuring product reliability, signal integrity, and regulatory compliance. From medical imaging systems and patient monitoring equipment to wearable and implantable devices, every stage—from PCB design and manufacturing to assembly and testing—directly impacts device performance and patient safety.
At PCBWay, our PCB Design Service supports medical electronics projects from concept to production by providing professional schematic design, PCB layout, DFM optimization, and manufacturing-ready solutions. In this guide, we'll explore the key considerations for medical PCB design, manufacturing, assembly, testing, industry challenges, and future technology trends.
A medical PCB is far more than a standard PCB used in a healthcare product. It is specifically engineered for life-critical applications that demand exceptional reliability, safety, and regulatory compliance. Since medical PCBs are widely used in patient monitoring systems, medical imaging equipment, in-vitro diagnostic devices, and implantable electronics, even minor manufacturing defects may affect diagnostic accuracy or compromise patient safety.

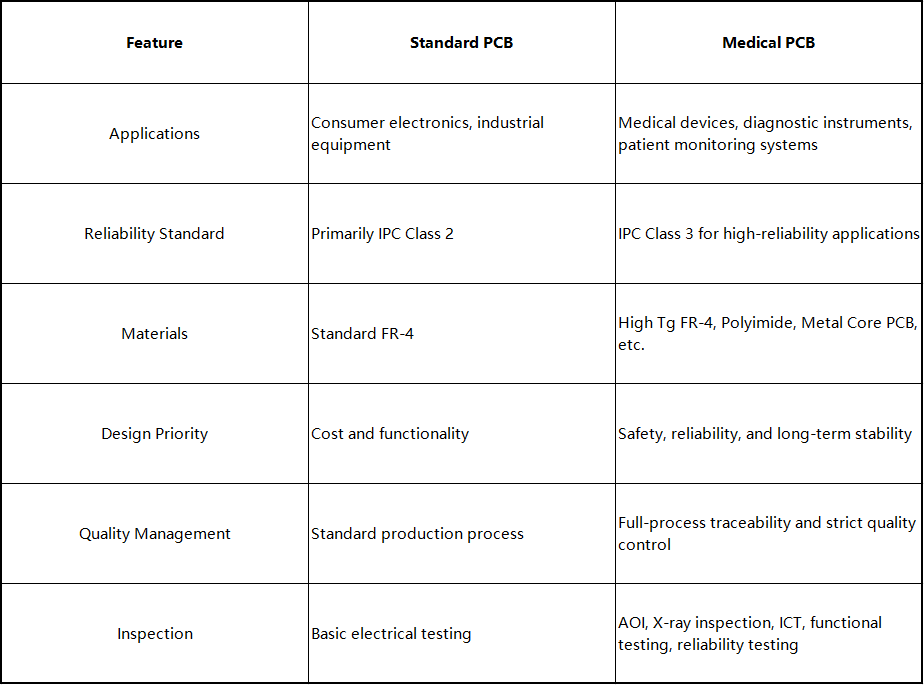

Compared with conventional PCBs, medical PCBs place greater emphasis on long-term operational stability, complete manufacturing traceability, and lifecycle quality management.
As medical electronics continue to evolve toward miniaturization, portability, and intelligent connectivity, medical PCBs are now used across a wide range of healthcare equipment. Different applications require different PCB structures, materials, and manufacturing technologies.
Typical applications include:
Wearable and implantable electronics increasingly rely on HDI PCBs, flexible PCBs, and rigid-flex PCBs to achieve compact form factors, lightweight designs, and high mechanical reliability.
Before starting a medical PCB project, understanding the complete PCB design workflow—from schematic capture and PCB layout to DFM optimization—is essential: Complete PCB Design Guide
Medical PCB design determines the overall reliability and performance of a medical device. Component placement, material selection, stack-up design, routing strategy, and thermal management should all comply with medical industry standards while minimizing manufacturing risks and ensuring long-term operational stability.
Regulatory compliance should be incorporated into the medical PCB design process from the earliest development stage. Common standards include ISO 13485 for medical device quality management systems and IPC-6012 Class 3 for high-reliability printed circuit boards. Products intended for international markets may also need to comply with FDA regulations in the United States and CE-MDR requirements in Europe.
For implantable or body-contacting devices, PCB materials should also be evaluated for biocompatibility to minimize the risk of allergic reactions, contamination, or material degradation.
Complete design documentation—including schematics, PCB stack-up, impedance calculations, and bill of materials (BOM)—should remain fully traceable throughout the product lifecycle to support regulatory approval and quality audits.
Compact medical devices such as blood glucose meters, hearing aids, and implantable sensors depend heavily on High-Density Interconnect (HDI) technology. Laser-drilled microvias, via-in-pad structures, and ultra-fine trace widths as small as 2–3 mil enable high component density within a limited PCB area, supporting lighter and smaller medical products.
For high-speed applications such as ultrasound and ECG systems, controlled impedance routing is equally important. Optimized PCB stack-up designs combined with low-loss dielectric materials, including High Tg FR-4 and Polyimide, help reduce signal attenuation and maintain accurate diagnostic data transmission.
Learn more about HDI PCB design and manufacturing:
PDN Design Guidelines for HDI PCB
How to Select the Right HDI Stack-Up at the HDI Design Stage
Medical devices often operate continuously under demanding conditions. Imaging systems, power modules, and high-performance processors generate significant heat, making thermal management an essential aspect of medical PCB design.
Typical thermal design strategies include:
Thermal simulation tools can identify hot spots during the design phase, allowing engineers to optimize component placement and ensure stable operation across a wide operating temperature range.
Most medical PCBs combine SMT and through-hole assembly technologies. Ultra-miniature SMT components enable high-density HDI layouts, while connectors and high-current power components are typically assembled using through-hole technology (THT) to improve mechanical strength and durability.
Standardized test points should also be incorporated during medical device PCB design to facilitate ICT inspection during manufacturing and simplify troubleshooting throughout the product lifecycle, reducing maintenance costs and improving serviceability.
Once the medical PCB design is finalized, the project moves into the manufacturing stage. Compared with standard PCBs, medical PCBs demand higher manufacturing precision, stricter material selection, and comprehensive quality control throughout the entire production process to ensure long-term reliability and regulatory compliance.
Selecting the right PCB material is critical for ensuring the safety and durability of medical devices. Material selection is typically based on sterilization requirements, thermal performance, mechanical reliability, and environmental safety.
Common material choices include:
Different medical applications may also require specialized PCB materials with enhanced thermal conductivity, low dielectric loss, or high-frequency performance.
Modern medical devices often integrate large numbers of electronic components within compact spaces. To support these requirements, manufacturers commonly employ multilayer PCB technology, HDI PCB fabrication, sequential lamination, laser-drilled microvias, and precision imaging processes.
For complex systems such as CT scanners, MRI equipment, and advanced diagnostic instruments, these manufacturing technologies improve routing density, signal integrity, and overall board reliability while maintaining tight dimensional tolerances throughout production.
Medical PCBs require significantly stricter quality control than conventional electronics.
Throughout the manufacturing process, multiple inspection methods are typically implemented, including:
Automated Optical Inspection (AOI)
These inspection procedures verify circuit integrity, solder quality, impedance consistency, and overall manufacturing reliability, helping ensure that every medical PCB meets the demanding performance requirements of healthcare applications.
Medical device manufacturing often involves small production volumes, multiple product variants, and strict regulatory requirements. Turnkey PCB assembly services streamline this process by integrating component sourcing, PCB assembly, testing, and quality control under a single supplier, reducing development time and simplifying project management.
Modern SMT equipment enables highly accurate placement of miniature sensors, high-density ICs, and wireless communication modules commonly used in medical electronics.
Meanwhile, connectors, transformers, and high-current components are typically assembled using through-hole technology (THT) to improve mechanical strength and long-term reliability.
During assembly, carefully controlled reflow soldering profiles help ensure consistent solder joint quality while minimizing thermal stress on sensitive medical components.
After assembly, medical PCB assemblies typically undergo multiple verification stages before shipment.
These commonly include:
Comprehensive testing significantly reduces field failures and helps ensure the reliability required for medical equipment.
Component shortages can delay medical equipment production and affect product delivery schedules.
Professional turnkey PCB assembly providers typically maintain mature supplier networks, long-term sourcing strategies, and complete material traceability systems. These capabilities help ensure stable component availability, support alternative component evaluation when necessary, and simplify regulatory documentation for medical device manufacturers.
Developing medical electronics presents several common challenges throughout the product lifecycle. Early engineering collaboration and experienced manufacturing support can significantly reduce development risks.
As wearable and implantable medical devices continue to shrink in size, PCB layouts become increasingly complex. Fine-pitch routing, laser-drilled microvias, and ultra-thin PCB structures all increase manufacturing difficulty.
Performing DFM analysis early in the medical PCB design process and working with manufacturers experienced in HDI fabrication can greatly improve manufacturability and reduce redesign costs.
Medical devices often need to comply with multiple international standards depending on their target market.
Experienced manufacturing partners can provide complete production records, inspection reports, material certifications, and manufacturing traceability to simplify regulatory approval processes for FDA, CE, and other medical certifications.
Global shortages of semiconductors and electronic components continue to affect product development schedules.
Turnkey manufacturing services help mitigate these risks through diversified sourcing channels, strategic inventory planning, and qualified alternative component recommendations, ensuring stable production throughout the product lifecycle.
Establishing an in-house medical PCB manufacturing and assembly capability requires significant investment in equipment, engineering expertise, quality systems, and regulatory compliance.
Partnering with an experienced medical PCB manufacturer offers several advantages:
The rapid evolution of smart healthcare, portable medical devices, and connected medical systems continues to drive innovation in medical PCB technology.
Several trends are expected to shape the future of the industry.
Flexible Polyimide PCBs are becoming increasingly common in wearable health monitors, smart medical patches, and implantable devices because they conform naturally to the human body while providing excellent durability.
Metal-core PCBs are also seeing wider adoption in portable medical equipment that requires enhanced thermal management.
Next-generation monitoring systems and diagnostic equipment increasingly incorporate wireless communication modules, integrated antennas, and RF circuitry.
HDI technology enables highly integrated layouts that combine sensors, wireless communication, and embedded processing into compact medical devices capable of remote healthcare monitoring.
Artificial intelligence is transforming diagnostic imaging and laboratory equipment.
Medical systems supporting AI-based image processing require high-speed signal transmission, low-noise PCB stack-ups, controlled impedance routing, and advanced simulation technologies to maintain signal integrity and ensure accurate diagnostic performance.
At the same time, simulation-driven design, Design for Manufacturability (DFM), and integrated design-to-manufacturing services are becoming increasingly important, helping medical device developers shorten development cycles while improving overall product reliability.
Medical PCBs are the foundation of modern healthcare electronics, supporting everything from patient monitoring systems to advanced diagnostic equipment. As the industry continues to demand higher reliability, miniaturization, and regulatory compliance, professional engineering support becomes increasingly important.
With PCBWay's PCB Design Service, PCB manufacturing, and turnkey PCB assembly capabilities, developers can streamline the entire product development process—from concept and medical PCB design to mass production—bringing innovative medical devices to market faster and more efficiently.
