In RF PCB design, selecting and placing the right RF components is critical to signal integrity, impedance matching, and electromagnetic isolation. Because RF signals are highly sensitive to trace length, grounding, and impedance discontinuities, even small layout changes can affect overall circuit performance.
This guide covers key RF PCB layout principles for component placement, parasitic control, connector selection, and thermal management. For a broader introduction to RF PCB design, see our RF PCB Design Guide.
At high frequencies, PCB traces no longer behave simply as conductors but exhibit transmission-line characteristics. When the electrical length of a trace becomes significant relative to the signal transition time, the PCB trace needs to be treated as a transmission line. Under these conditions, impedance discontinuities, discontinuities in the reference plane, and excessively long signal paths can cause reflections, crosstalk, and electromagnetic radiation.
An improper RF PCB layout can lead to several common problems:
Many of these problems originate from component placement decisions made early in the design process. Establishing clear placement principles during the RF design stage can significantly reduce debugging effort and shorten the overall product development cycle.

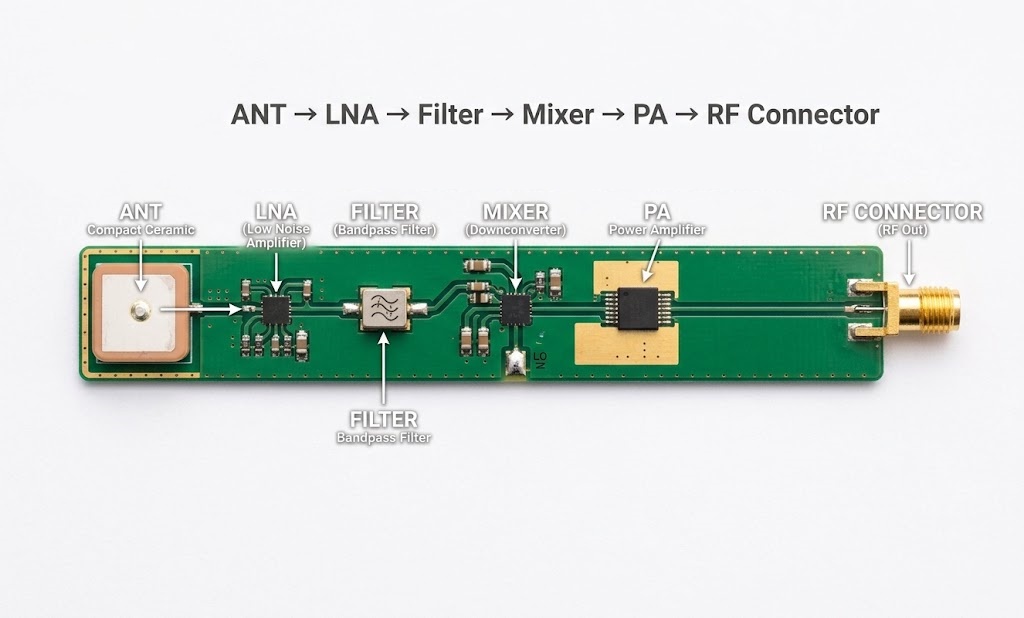

Active components are at the core of an RF circuit and include low-noise amplifiers, oscillators, mixers, and other RF devices. Because these components are highly sensitive to their electrical and electromagnetic environment, their selection and placement should follow carefully defined design requirements.

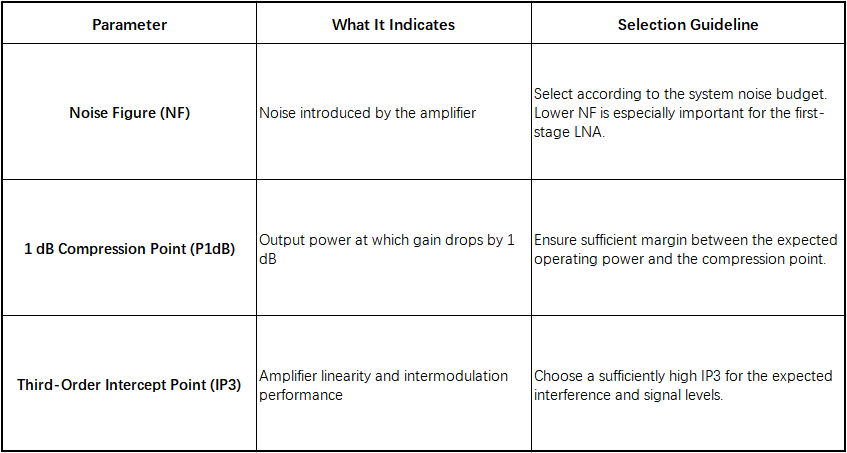

An amplifier located at the front end of an RF receive chain has a direct impact on receiver sensitivity. When selecting an RF component, three key parameters should be considered:

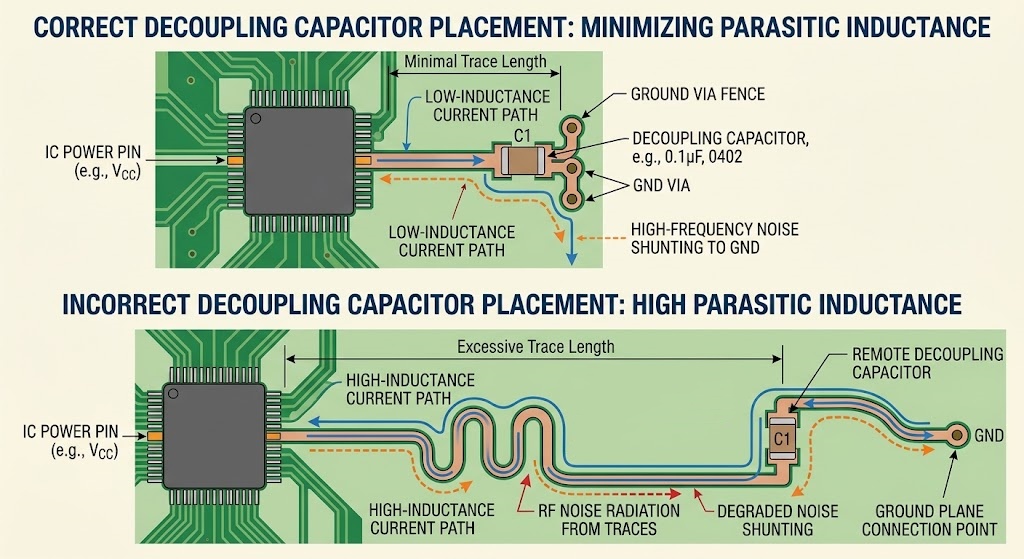

In an RF PCB layout, the matching network should be designed according to the device port characteristics and S-parameters to achieve the appropriate impedance match, maximize power transfer, and minimize reflections. Decoupling capacitors should be placed as close as possible to the device power pins to minimize the current-loop area and parasitic inductance.
Oscillators and frequency sources provide stable reference or local-oscillator signals for RF systems. Their frequency stability, phase noise, and sensitivity to power-supply noise can all have a direct impact on system performance.
The key oscillator placement principles in an RF PCB layout include:
Place close to the corresponding clock or RF pins: Minimize signal-path length to reduce parasitic effects and external noise coupling.
In practical RF design, properly placing the oscillator and separating it from radiating sources such as inductors and switching power supplies can significantly reduce EMI. This is particularly important in applications such as medical and industrial equipment, where electromagnetic compatibility requirements are stringent.
Mixers perform frequency conversion between RF, LO, and IF signals. Conversion loss, port isolation, and linearity are among their key performance parameters. Mixers are particularly sensitive to PCB layout because improper routing can cause local-oscillator leakage into the RF or IF paths.
Key RF design considerations for mixer placement include:
Passive components perform critical functions such as impedance matching, filtering, and power decoupling in RF circuits. Their selection and placement can have an equally significant impact on overall circuit performance.
The impedance of a capacitor varies with frequency. Because practical capacitors contain parasitic inductance, their impedance reaches a minimum around the self-resonant frequency (SRF) and then increases as the frequency rises beyond the SRF. Therefore, when selecting an RF component, capacitors should be chosen based on their impedance characteristics over the target operating frequency range, while taking PCB and package parasitics into account.
Key capacitor placement recommendations include:
Inductors, baluns, and other magnetic components can generate stray magnetic fields and may also be susceptible to external magnetic interference. In RF PCB layout, these components should generally be placed close to the relevant RF ports to minimize connection length. Their orientation should also be considered to reduce unwanted magnetic coupling between adjacent components. For high-Q inductors, avoid routing unrelated signal traces underneath the component whenever possible.
Quality factor, or Q, is an important parameter for RF passive components. In RF passive networks such as matching networks, resonant circuits, and filters, a higher Q generally means lower passive loss and better selectivity. However, actual performance also depends on component construction, operating frequency, and circuit topology.
For RF design applications, high-Q passive components should therefore be considered for critical locations such as matching networks, resonant circuits, and filters.
Parasitic parameters are one of the hidden challenges in RF design. Pads, vias, and traces all introduce additional inductance and capacitance, which can cause actual circuit performance to deviate from simulation results. Effective parasitic control is therefore an important part of RF PCB layout.
Long and narrow current paths can introduce significant parasitic inductance and degrade high-frequency performance. Recommended measures include:

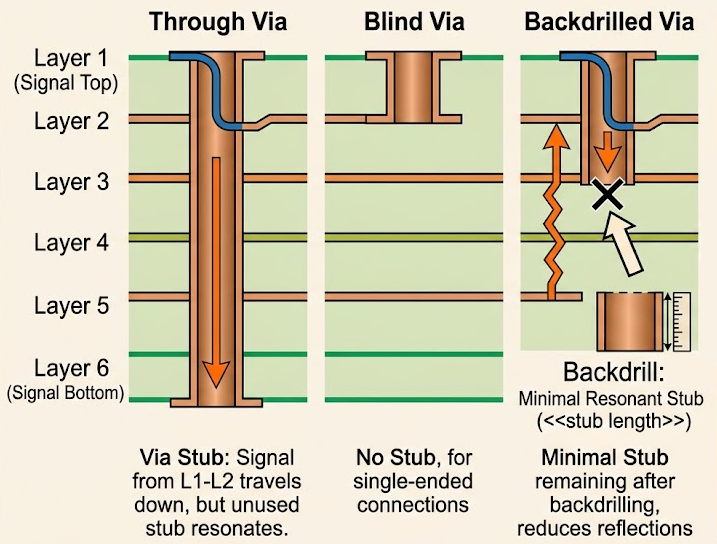

A conventional through-via can form a stub when it extends through unused PCB layers. At sufficiently high frequencies, this unused section can behave as a resonant structure and introduce additional reflection and loss.
Possible solutions include:
The appropriate solution depends on the operating frequency, stackup, electrical length of the via stub, fabrication capabilities, and overall cost requirements.
An incomplete or excessively long ground-return path increases loop inductance and can aggravate electromagnetic radiation. Recommended practices include:

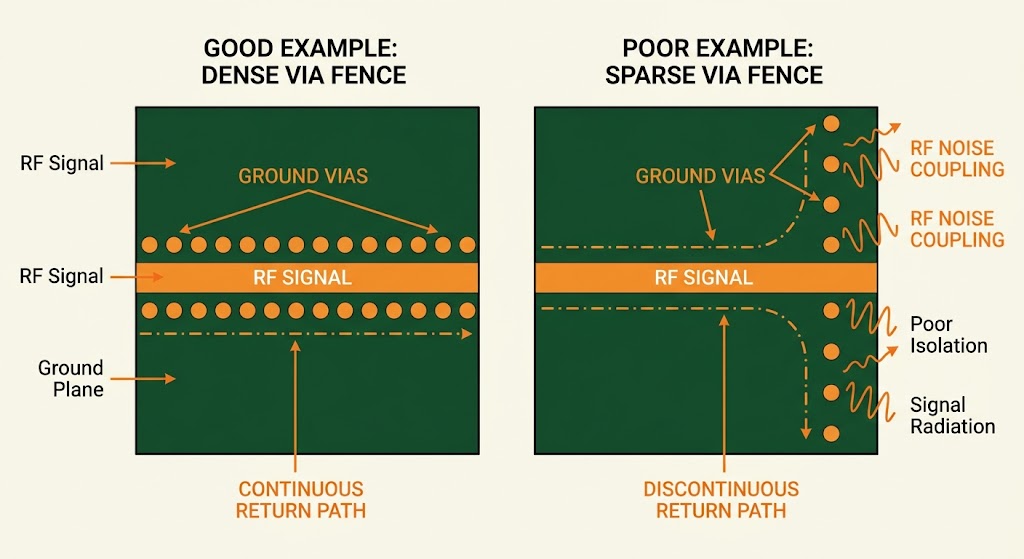

The primary purpose of stitching vias is to provide a low-impedance return path and help suppress unwanted plane resonances. As operating frequency increases, via density generally needs to increase accordingly, with additional stitching vias used around critical signal transitions and isolation boundaries.
Many of these issues are also related to common RF PCB layout mistakes, such as excessive vias, discontinuous ground planes, and poorly placed matching networks. For more examples, see our guide to common RF PCB layout mistakes and how to avoid them.
Connectors provide the interface through which RF signals enter and leave the PCB. An unsuitable connector or poor connector layout can become a performance bottleneck in the entire RF signal chain.
During RF component selection, connectors should meet the following requirements:
In an RF PCB layout, connector placement should consider the following:
Common connector types can be categorized as wire-to-wire, board-to-board, and wire-to-board connectors, each serving different application requirements. For RF applications, connector selection should focus on characteristic impedance, operating frequency, insertion loss, return loss, crosstalk, mechanical structure, and other relevant electrical and mechanical parameters.
RF power devices can generate significant heat during operation. Inadequate thermal design can lead to parameter drift, reduced component lifetime, or even device failure.
Effective thermal management strategies include:
Proper RF component selection and placement are essential for maintaining signal integrity, impedance continuity, isolation, and thermal performance. By following practical RF PCB layout principles from the early design stage, engineers can reduce parasitic effects, minimize signal loss, and improve overall RF system reliability.
