In PCB schematic and layout design, engineers often focus more on capacitor capacitance and package size while overlooking capacitor voltage rating, which directly affects product reliability.
Incorrect voltage rating selection may cause capacitor failure, excessive power ripple, or long-term capacitance degradation. However, selecting an excessively high voltage rating can also increase PCB space and BOM cost.
This article explains practical capacitor voltage rating selection methods, covering MLCC, electrolytic, tantalum, and film capacitors, with common power rail examples and design considerations.

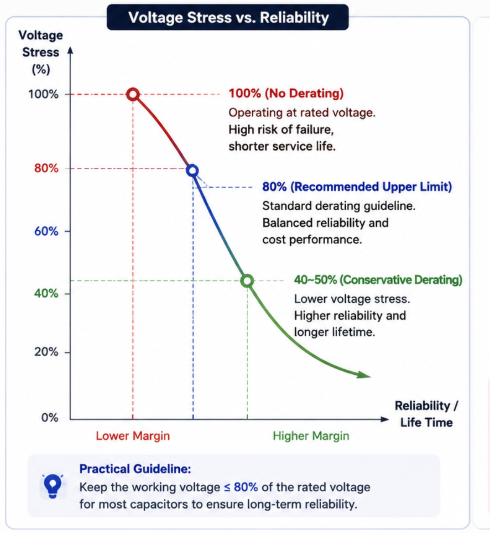

Voltage derating means controlling the ratio of the maximum circuit peak voltage to the capacitor rated voltage. The purpose is to reduce the internal electric field stress of the capacitor and achieve the following benefits:
Different capacitor technologies have different internal structures and failure mechanisms. Therefore, a universal 1.5× voltage margin rule should not be applied to all capacitor types.

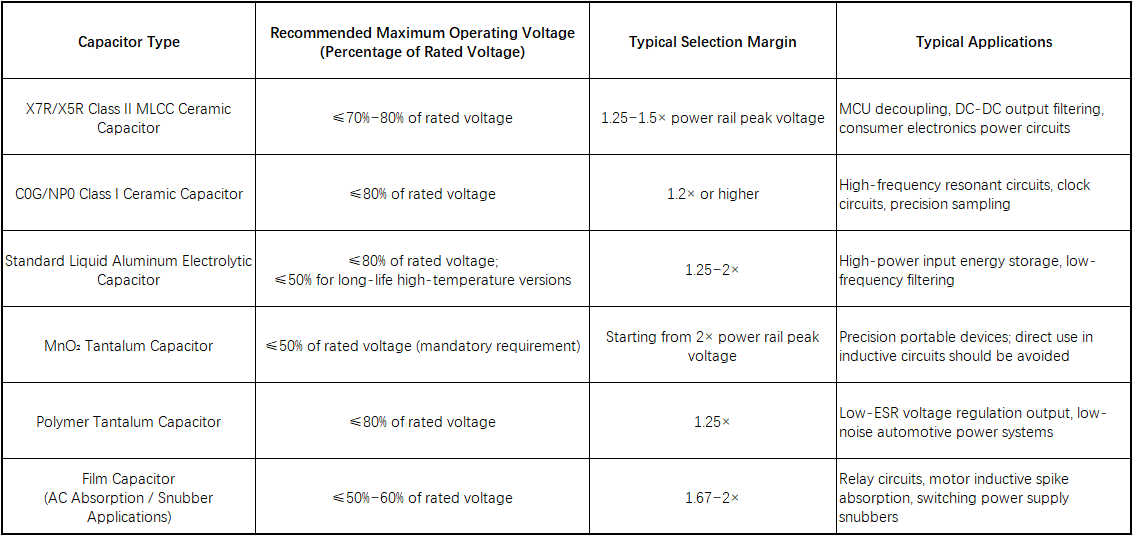

The following table provides commonly used voltage derating recommendations:
For standard digital circuits, ceramic capacitors typically use around 1.5× voltage margin. For tantalum capacitors and high-transient applications such as motors and relays, additional voltage margin should be applied.

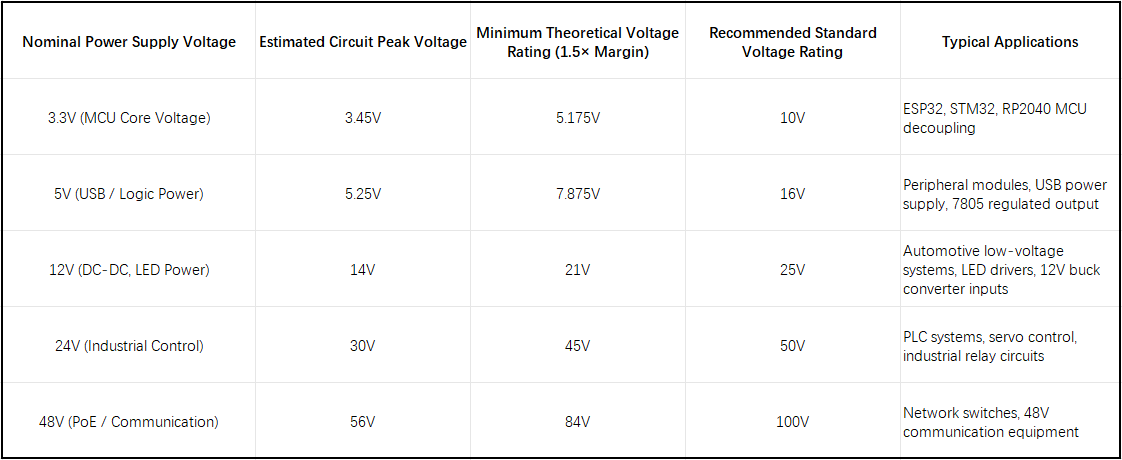

The first step in capacitor selection is to avoid directly using the nominal power supply voltage. The maximum instantaneous peak voltage under all operating conditions must be calculated, including the following three voltage increases:
Practical tip: When motors, coils, or automotive power nodes are involved, TVS transient suppression diodes should be added to clamp voltage spikes. The capacitor voltage rating should then be selected based on the peak voltage after clamping.
Select the capacitor material according to the circuit application and determine the minimum required voltage margin:
Common capacitor voltage ratings include: 6.3V, 10V, 16V, 25V, 35V, 50V, 63V, 100V, 200V and above.
After calculating the theoretical minimum voltage requirement, always select the next higher standard voltage rating. Do not select a lower voltage rating even if it appears close to the calculated value.
Example: For a 12V buck converter with a startup peak voltage of 14V
A 16V capacitor should not be selected because it does not provide sufficient voltage margin.
The final selection should be verified through both component datasheets and actual operating conditions.
LDOs, DC-DC converters, and MCUs may specify minimum capacitor voltage ratings in their datasheets or reference designs. The capacitor voltage rating should be selected according to these requirements while maintaining sufficient safety margin.

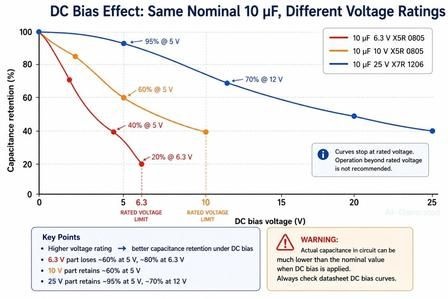

Class II ceramic capacitors experience capacitance reduction under DC voltage bias. Under high voltage stress, the actual capacitance may be significantly lower than the rated value. Therefore, manufacturers' DC Bias curves should be checked to ensure the effective capacitance remains sufficient for filtering and decoupling requirements.
X5R/X7R ceramic capacitors mainly use barium titanate-based ferroelectric materials as dielectric materials. When a DC electric field is applied across the capacitor, the internal electric domains become aligned and saturated, reducing the dielectric constant and causing capacitance loss.
The closer the operating voltage is to the rated voltage, the more significant the capacitance reduction becomes.
In comparison, C0G/NP0 ceramic capacitors do not have ferroelectric characteristics and are almost unaffected by DC Bias, making them suitable for applications requiring high capacitance stability.
For MLCCs with the same capacitance value, different voltage ratings may show significant differences in actual operating capacitance.
Lower-voltage MLCCs experience higher internal electric field strength at higher operating voltages, resulting in greater DC Bias capacitance reduction. Higher-voltage-rated MLCCs generally have thicker dielectric layers, which reduce electric field stress and provide better capacitance retention.
For example, for the same 10μF ceramic capacitor:
Actual capacitance variation depends on the capacitor manufacturer, dielectric formulation, package size, and test conditions. Therefore, the specific manufacturer's DC Bias curves should be reviewed during design.
Increasing the voltage rating of MLCCs can not only reduce long-term electrical stress but also improve capacitance retention under DC Bias conditions. However, designers should select appropriate voltage ratings according to actual circuit requirements rather than blindly choosing the highest available rating.
1. Do Not Focus Only on the Rated Capacitance
For X7R/X5R Class II ceramic capacitors, the nominal capacitance value does not always represent the actual capacitance under operating conditions.
For example:
Compared with selecting the lowest possible voltage rating, higher-voltage MLCCs generally provide more stable effective capacitance.
2. Select the Appropriate Package Size
Under the same capacitance and voltage rating, larger MLCC packages usually have thicker dielectric layers, which reduce internal electric field strength and improve DC Bias performance.
For example: 1206 packages generally provide better capacitance retention compared with 0603/0402 packages.
3. Use Stable Dielectric Materials for High-Precision Applications
For applications requiring high capacitance stability, such as:
C0G/NP0 dielectric capacitors should be preferred to avoid parameter variation caused by DC Bias.
This section summarizes recommended capacitor voltage ratings for common DC power rails used in consumer electronics, industrial control systems, and communication equipment, balancing reliability and cost considerations.
1. 3.3V Rail
6.3V capacitors are only suitable for extremely space-constrained applications without significant transient voltage spikes. Their main limitation is the severe DC Bias capacitance reduction and insufficient voltage margin.
For general designs, 10V X7R ceramic capacitors are recommended. A typical configuration includes a 100nF capacitor placed close to each MCU VDD pin, combined with a 4.7~10μF bulk capacitor for power stabilization.
2. 5V Rail
10V capacitors are generally considered a cost-driven compromise. Under a 5V operating voltage, they already consume 50% of the rated voltage margin, and their effective capacitance may decrease significantly due to DC Bias effects.
A 16V capacitor is usually the preferred choice for 5V systems because it provides better voltage margin, improved capacitance retention, and better compatibility with USB voltage variations.
3. 12V Rail
Using 16V capacitors for 12V power rails is not recommended.
With a startup peak voltage of 14V, the voltage stress reaches approximately 87.5% of the rated voltage, exceeding the typical 80% derating guideline for ceramic capacitors. Long-term operation under such conditions can accelerate aging.
Therefore, 25V capacitors are generally considered the standard choice for 12V systems.
4. 24V Industrial Rail
A 35V capacitor provides insufficient voltage margin. When load switching causes voltage spikes up to 30V, the voltage stress reaches approximately 86%.
A 50V capacitor operates at only 60% of its rated voltage under the same 30V peak condition, making it more suitable for industrial environments involving relays, solenoid valves, and other inductive loads.
Different circuits expose capacitors to different voltage conditions. In addition to the nominal supply voltage, designers should consider startup overshoot, ripple voltage, transient spikes, and capacitor characteristics.
For 3.3V/5V digital circuits, 10V or 16V X7R MLCC capacitors are commonly used for decoupling. Low-voltage MLCCs may suffer from significant DC Bias capacitance loss, especially in higher-capacitance applications.
For LDO, Buck, and Boost circuits, capacitor voltage ratings should be selected according to the maximum input/output voltage, ripple, and startup transient conditions. The actual effective capacitance of MLCCs under DC Bias should also be verified.
Motors, relays, and automotive power systems may generate high transient voltages during switching or load changes. Capacitor selection should consider protection components such as flyback diodes and TVS devices, and the voltage rating should be based on the maximum protected voltage.
Although capacitor voltage rating selection seems simple, many hardware failures are caused by incorrect assumptions during component selection. The following mistakes are frequently seen in PCB design.
Choosing a 6.3V capacitor for a 5V circuit or a 16V capacitor for a 12V circuit is a common mistake.
Power supply tolerance, startup overshoot, and transient voltage spikes may cause the actual voltage stress to exceed the capacitor rating, resulting in accelerated aging, leakage increase, or even capacitor failure.
In many circuits, the highest voltage stress does not occur during normal operation, but during startup, load switching, or abnormal conditions.
For example, switching power supplies and inductive loads can generate short-duration voltage spikes that are much higher than the nominal operating voltage. Selecting capacitors only based on the steady-state voltage may lead to unexpected failures.
For MLCCs, the marked capacitance value does not always represent the actual capacitance during operation.
If designers only consider the nominal value, a 10μF MLCC may provide much lower effective capacitance under DC voltage bias. This can result in insufficient filtering performance, increased power ripple, and unstable system operation.
Higher voltage-rated capacitors generally provide better voltage margin and DC Bias performance, but excessive selection can also introduce unnecessary costs.
For example, using 50V or 100V capacitors in a 3.3V digital circuit significantly increases component size and cost, while also reducing PCB space utilization in high-density designs.
The goal is not to select the highest voltage rating possible, but to select an appropriate rating that balances reliability, cost, and layout requirements.
MnO₂ tantalum capacitors require stricter voltage derating compared with ceramic capacitors.
Operating close to the rated voltage can increase the risk of thermal runaway and ignition failure. Therefore, tantalum capacitors should generally operate with sufficient voltage margin, especially in industrial and consumer products requiring high reliability.
Some power management ICs, MCUs, and analog devices have specific requirements for capacitor voltage rating, ESR, capacitance range, or dielectric type.
Following only general voltage derating rules without checking the component datasheet may cause problems such as regulator instability, loop oscillation, or abnormal chip operation.
A reasonable capacitor voltage rating strategy should not only ensure reliability but also consider PCB space, BOM cost, and manufacturing efficiency.
Reducing the number of capacitor voltage specifications used on a PCB can simplify procurement and assembly.
For general digital boards, 10V, 16V, and 25V capacitors can cover most applications. Industrial designs may add 50V-rated capacitors for higher-voltage power rails.
Using fewer standard voltage ratings reduces component variety, simplifies SMT production, and improves inventory management.
Different parts of a PCB have different voltage stress requirements.
Low-power digital circuits can typically use standard 10V or 16V MLCC capacitors, while power input sections, energy storage circuits, and inductive load areas may require 25V or 50V rated capacitors.
This approach provides a better balance between reliability and cost compared with using one high-voltage specification for the entire board.
The required voltage margin depends on the operating environment and product reliability level.
Capacitor voltage rating selection is not simply matching the capacitor rating with the supply voltage. It requires consideration of peak voltage, capacitor dielectric, DC Bias characteristics, operating conditions, and reliability requirements.
By calculating the actual voltage stress, applying proper derating rules, and verifying DC Bias performance, designers can achieve a better balance between reliability, cost, and PCB space.
