Bypass and decoupling capacitors are fundamental components in PCB power integrity design, yet they remain one of the most misunderstood topics in hardware engineering. Many engineers rely on empirical capacitor selection and layout practices, only to encounter issues such as excessive power rail ripple, ground bounce, erratic behavior of high-speed ICs, and challenging EMI troubleshooting. This article clearly distinguishes between the two functions. Adopting the quantitative design approach of target impedance, it covers capacitor selection, advanced layout techniques, anti-resonance mitigation and simulation validation, delivering a practical PCB power integrity optimization workflow for engineers.

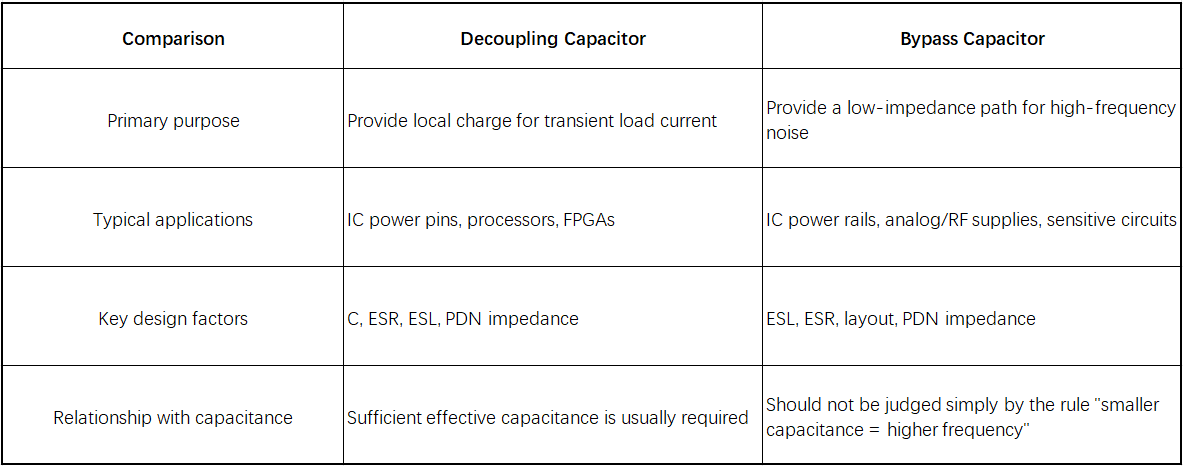

One of the most common misconceptions is that bypass capacitors and decoupling capacitors are two different types of components.

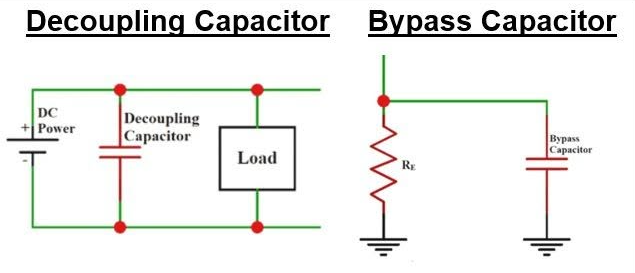

The more accurate way to understand them is:Bypass and decoupling describe the function a capacitor performs in a circuit, not a specific capacitor type, package, or capacitance value.
For example, the 0.1 μF MLCC placed next to an IC power pin may serve both bypass and decoupling functions at the same time. Only in precision analog, RF, and very high-speed digital designs do the design objectives of these two functions become sufficiently different to require more specialized placement and optimization.
The primary purpose of decoupling is to handle rapid changes in load current, or transient di/dt.
When transistors inside an FPGA, MCU, or high-speed logic device switch simultaneously, a remote DC-DC converter cannot respond instantly to the sudden increase in current demand.
A decoupling capacitor acts as a local energy reservoir near the load. It rapidly supplies charge to compensate for the transient current demand, helping reduce voltage droop, PDN ringing, and interactions between different power domains.
Its effective operating range can extend from near DC into the hundreds of megahertz, depending on the capacitor, package, PCB structure, and PDN impedance. The primary goal is to maintain a stable supply voltage during load transients.
The primary purpose of bypassing is to provide a low-impedance path for high-frequency noise.
A bypass capacitor diverts unwanted AC noise, switching harmonics, and high-frequency disturbances on a DC power rail toward the reference plane, preventing this noise from propagating into sensitive circuits such as ADCs, op-amps, RF circuits, and high-speed interfaces.
Bypass operation is often associated with higher-frequency noise, typically above the MHz range, where the capacitor provides a low-impedance path for unwanted high-frequency current. However, its actual effective frequency range is determined by the capacitor's ESL, ESR, mounting structure, and the surrounding PDN rather than by a simple frequency threshold.
In practice, the same capacitor can perform both functions. Therefore, the distinction between a bypass capacitor vs decoupling capacitor should be understood primarily in terms of what the capacitor is intended to accomplish within the PDN.
There is no such thing as a perfectly ideal capacitor in a real PCB.
A practical capacitor can be modeled as a combination of capacitance (C), equivalent series resistance (ESR), and equivalent series inductance (ESL). These parasitic parameters directly determine the capacitor's impedance over frequency.
The capacitive reactance is:
At lower frequencies, capacitive behavior dominates, and the capacitor primarily provides energy storage and voltage stabilization.
As frequency increases, the effect of ESL becomes increasingly significant. When the operating frequency approaches and exceeds the capacitor's self-resonant frequency (SRF), the inductive component begins to dominate. The capacitor impedance then starts to rise and the capacitor eventually behaves more like an inductor.
This leads to one of the most important principles in PDN design: Low-frequency performance is primarily influenced by effective capacitance, while high-frequency performance is increasingly determined by ESL, ESR, and the PCB mounting structure.
For this reason, improving the layout and minimizing the current-loop inductance can often provide greater benefits than simply increasing capacitance or adding more capacitors.
The fundamental goal of both bypass and decoupling capacitor placement is the same: Minimize the power-to-ground current-loop area and reduce parasitic inductance.
Rather than applying a single fixed placement distance to every design, capacitor placement should be determined by the IC package, PCB stackup, operating frequency, and load-current slew rate.
For high-speed circuits, shorter connections and smaller current loops between the capacitor and load generally result in lower high-frequency PDN impedance.
1. Place capacitors close to the load
Bypass and decoupling capacitors should be placed as close as practical to the IC power and ground connections.
The higher the frequency, the more critical the connection length becomes. Long traces introduce additional parasitic inductance and can significantly reduce the effectiveness of the capacitor.
2. Use dedicated vias to connect directly to the planes
Whenever the PCB structure allows it, the capacitor's power and ground pads should use dedicated vias to connect directly to the adjacent power and ground planes.
Avoid routing multiple capacitor pads through a shared trace before reaching a via. Such structures increase current-path length and parasitic inductance.
3. Avoid crossing plane splits
The capacitor and its associated current path should not cross power-plane splits or discontinuities in the ground plane.
A discontinuous reference plane can force high-frequency return current to take a longer path, increasing loop area and PDN impedance.
4. Use multiple parallel vias for high-current applications
For high-current, high-speed devices such as FPGAs and processors, multiple parallel vias can be used on both the power and ground connections when appropriate.
This reduces via inductance and current density, improving the overall impedance of the power path.
Different capacitor values can address different frequency ranges and transient-current requirements. However, it is an oversimplification to assume that smaller capacitance always means higher-frequency performance.
Actual performance also depends on package size, ESL, ESR, SRF, and the PCB mounting structure.
A common starting strategy is:
The actual capacitance values, quantities, and placement should be determined based on the target impedance, load-transient characteristics, and the IC manufacturer's PDN recommendations, rather than by mechanically applying a fixed capacitor combination.
When top-layer space is limited or BGA power pins are densely distributed, decoupling capacitors can be placed on both sides of the PCB.
One common approach is: Place medium- and lower-frequency capacitors on the top side and high-frequency small-value MLCCs on the bottom side.
Larger-value capacitors can be placed on the top side near the IC to handle medium- and lower-frequency transient currents.
High-frequency MLCCs can be placed on the bottom side directly beneath or near the corresponding IC power-pin region, using short connections and low-inductance vias to connect to the power and ground planes.
For high-density BGAs, the area beneath the package can provide valuable space for additional decoupling capacitors and help reduce congestion around the component.
The main advantage of this approach is not simply adding more capacitors. It is using both sides of the PCB to shorten the high-frequency current path and reduce mounting inductance.
At high frequencies, capacitor performance depends heavily on the mounting structure.
Where the package and manufacturing process allow it, via-in-pad or other low-inductance via structures can be used to minimize the connection between the capacitor pad and via.
For ICs with multiple power pins, distributed decoupling is also important.
Instead of placing all capacitors on one side of the chip, distribute them according to the power-pin locations so that each power region has a short and low-inductance decoupling path.
BGA packages typically contain a large number of densely packed power and ground balls. Their decoupling strategy therefore needs to consider several factors simultaneously:
Distribution of power and ground balls
For high-performance FPGAs, processors, and high-speed memory devices, high-frequency decoupling capacitors can be placed beneath or around the BGA package. Staggered or optimized via structures can further reduce loop inductance.
However, the number and placement of capacitors should not be determined by a fixed rule such as "one capacitor per power ball." The final configuration should be based on the IC manufacturer's recommendations, PDN simulation, and the actual power-distribution structure.
Simply applying a fixed capacitor combination such as 10 μF + 1 μF + 0.1 μF is a common practice, but it can also introduce unnecessary resonances in a PDN.
A more mature power integrity design approach uses target impedance as the quantitative design criterion.
Instead of selecting capacitor values based purely on conventional rules of thumb, engineers can design the PDN around a defined impedance target and then select the capacitor combination and layout needed to meet it.
The maximum acceptable PDN impedance can be estimated from the allowable supply-voltage variation and the transient current change:
Where:
The actual PDN impedance should remain below this target over the frequency range relevant to the load transient.
Capacitor selection, capacitor quantity, and PCB layout should therefore be optimized around the target-impedance curve rather than around a predefined capacitor-value combination.
Under DC bias, the effective capacitance of an MLCC can decrease significantly. This effect is particularly important for high-capacitance MLCCs and capacitors with relatively low voltage ratings.
Always check the manufacturer's DC-bias characteristics instead of relying solely on the nominal capacitance.
Extremely low ESR can result in sharper resonance peaks. A controlled amount of ESR can provide damping and help smooth PDN impedance variations.
Do not simply compare the capacitor's SRF with the system clock frequency.
Instead, evaluate the capacitor's actual impedance over the frequency range associated with the load-current spectrum and the PDN target impedance.
The capacitor voltage rating should provide sufficient margin for the actual operating voltage, transient conditions, DC-bias derating, and long-term reliability requirements.
Using multiple capacitors in parallel is a common way to achieve low impedance over a wider frequency range. However, mechanically applying a ten-times capacitance progression can introduce anti-resonance problems.
Different capacitors have different self-resonant frequencies and parasitic parameters. When their impedance valleys do not connect smoothly, an impedance peak can occur at specific frequencies.
This peak can increase voltage ringing at the corresponding frequency and potentially worsen power noise and EMI performance.
Anti-resonance is not caused simply by using a "10× capacitance ratio."
It results from the interaction of:
1. Use distributed capacitance values
Avoid rigidly following a decade-based capacitance progression.
Instead, select capacitor values and packages with appropriately spaced resonant characteristics so that the PDN maintains relatively low impedance across the required frequency range.
2. Introduce controlled damping
The capacitor's inherent ESR can provide useful damping. In some designs, a small series damping resistor or other damping structure can be used to reduce sharp resonance peaks.
3. Control the total number of capacitors
Blindly adding large numbers of capacitors can introduce additional resonant modes.
The number of capacitors should therefore be determined by the target impedance and transient-current requirements rather than by the assumption that more capacitors always provide better decoupling.
Experience-based layout alone is often insufficient to guarantee stable performance in a production design.
A more reliable approach is to establish a closed-loop workflow: Pre-layout simulation → Post-layout optimization → Hardware validation
Before PCB layout, import the PCB stackup parameters, capacitor S-parameters, and target-impedance requirements.
Evaluate different capacitor combinations and identify potential resonance problems before committing to the layout.
This allows engineers to adjust the capacitor values, packages, and quantities at an early stage.
After routing, include the actual PCB traces, vias, plane structures, and component locations in the analysis.
Extract the relevant parasitic parameters and sweep the PDN impedance over the required frequency range.
Long traces, excessive via inductance, and unnecessarily large current loops can then be identified and optimized.
A vector network analyzer (VNA) can be used to measure the actual PDN impedance of the assembled PCB.
The measured impedance curve can then be compared with the simulation results. Differences between simulation and measurement can be used to refine capacitor placement, component selection, and the PDN model.
This simulation-and-measurement loop helps reduce the gap between theoretical design assumptions and real PCB behavior.
Many power-integrity problems in production designs can be traced back to several widely circulated design assumptions.
High-frequency capacitor performance is strongly influenced by ESL, so capacitance alone does not determine high-frequency effectiveness.
Larger-value capacitors often have higher parasitic inductance and may therefore perform poorly at high frequencies. They cannot simply replace small-package MLCCs designed for high-frequency decoupling.
Blindly adding capacitors in parallel can introduce multiple anti-resonant peaks and increase PDN impedance at specific frequencies.
The number of capacitors should be selected according to the target impedance and load-transient requirements.
A capacitor can be physically close to an IC while still having a poor high-frequency current path due to an inefficient via structure or discontinuous reference plane.
The key parameter is current-loop area and inductance, not simply the straight-line distance between two components.
Different ICs have different transient-current requirements, supply-voltage tolerances, and noise limits.
There is no universal capacitor combination that works for every design.
The final PDN configuration should be based on the IC manufacturer's recommendations, target impedance, actual operating conditions, and simulation results.
