Electrical Discharge Machining (EDM) Design Guidelines

This guideline provides DFM (Design for Manufacturability) specifications for EDM for structural and mechanical designers. It helps prevent common issues including excessive spark‑off corner radius, poor flushing‑caused defects, dimension deviation from electrode wear, recast‑layer fatigue cracks and out‑of‑tolerance dimensions during design‑and‑drawing stages.

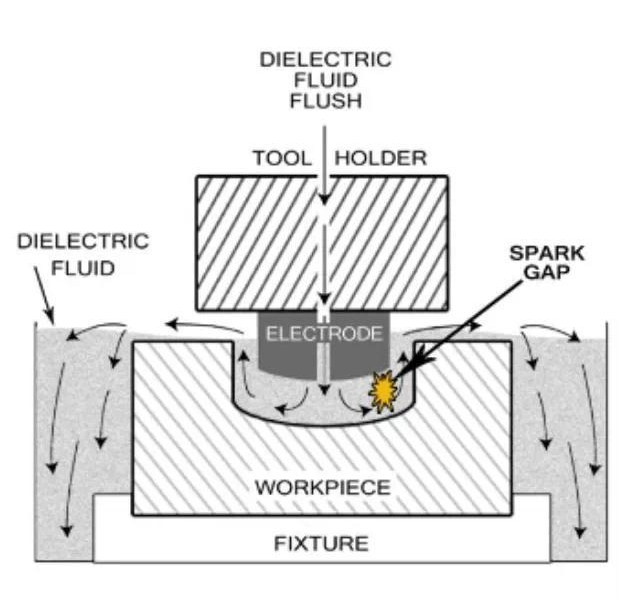

（EDM Working Principle）

1. Manufacturing Limits & Tolerance Specifications

At the early design phase, verify that part dimensions and tolerances match EDM machine capability boundaries.

• Minimum Manufacturable Feature Size: Down to 0.05 mm (highly dependent on electrode diameter and geometry).
• Maximum Workpiece Dimensions: Limited by machine envelope, up to 800 x 600 mm travel range.
• Internal Corner Limitations: 0.025 mm ~ 0.10 mm. Determined by different wire-cut processes.
• Thickness & Accuracy Correlation: Thickness from 0.05 mm ~ 1.0 mm；Dimensional tolerance from ±0.002 mm ~ ±0.02 mm. Determined by different wire-cut processes.

2. Major Types of EDM Processes

Based on kinematics, electrode configuration, and target industrial applications, non-traditional electro-discharge manufacturing is categorized into four primary configurations:

Wire EDM (Wire-Cut Electrical Discharge Machining)

In a standard Wire EDM setup, a continuously traveling thin brass or coated wire (typically 0.1–0.3 mm in diameter) serves as the cutting electrode tool. Guided by computerized numerical control, high-precision trajectory planning and continuous wire feeding ensure high processing stability. Under optimal machine calibration, material selection, and parameters, modern cnc wire cut technology can easily achieve sub-micron dimensional control. Parts processed via cnc wire cut exhibit virtually no mechanical burrs common in conventional milling, although minor spark erosion tracks and a thin recast layer remain. This process is extensively applied to complex 2D profiles, narrow slots, irregular keyways, and tapered precision geometries.

Sinker EDM (Ram / Die-Sinking EDM)

Sinker EDM utilizes custom-machined 3D copper or graphite electrodes. Controlled spark erosion between the shaped electrode and workpiece gradually replicates the exact inverted form onto the part. This method excels at forming blind cavities and intricate concave structures. Because electrode wear occurs dynamically during operation, precise multi-stage tool switching is essential. Sinker units often incorporate advanced cnc edm controllers to compensate for wear paths, serving as a pillar process in injection mold, die casting, and stamping tool production.

Hole Drilling EDM (Fast Hole Spark Drilling)

Hole drilling EDM uses a tubular rotating electrode combined with internal high-pressure dielectric flushing to clear erosion debris. It specializes in drilling tiny deep holes or angled channels into hard metals such as cemented carbide and nickel superalloys. Widely used for turbine blade cooling holes and fuel nozzle micro-apertures, it eliminates traditional drill bit breakage issues. Additionally, high-speed hole drillers are regularly deployed to produce starting pilot holes for subsequent cnc wire edm cutting operations.

Micro EDM

Micro EDM utilizes ultra-fine electrodes and extremely small pulse discharge energy to produce micro-scale features down to a few micrometers. By minimizing single-discharge energy, the thermal affect zone (HAZ) is significantly reduced, making it ideal for medical implants, micro-fluidic channels, and micro-electronic components.

3. Key Advantages of Electrical Discharge Machining

• Machining Super-Hard Conductive Materials: Material hardness imposes almost no barrier. High-hardness alloys like quenched tool steels, tungsten carbide, titanium alloys, and Inconel can be machined easily.
• Ultra-High Precision Capability: Under controlled environment and parameters, electro-discharge equipment delivers micron-level dimensional accuracy across complex features.
• Near-Zero Mechanical Cutting Forces: Because physical tool-to-workpiece contact is avoided, mechanical cutting force is virtually non-existent, eliminating physical deformation risks on ultra-thin walls.
• Extreme Geometric Versatility: Capable of producing sharp internal corners, deep narrow cavities, micro-slots, and high aspect-ratio holes impossible for rotative cutters.
• Superior Surface Finish Potential: Multi-pass fine-finishing cycles yield extremely low surface roughness without directional tool marks, despite microscopic discharge pit textures.

4. Process Limitations & Design Considerations

Internal Corner Radius

• Rule: Minimum internal corner radius for wire-cut EDM is approximately equal to the wire radius + discharge gap. Theoretical zero-radius sharp internal corners cannot be manufactured and should not be specified on drawings.
• Engineering Example: Using a 0.2 mm diameter wire typically results in a minimum internal corner radius of ≥ 0.13 mm.

Slot / Gap Aspect Ratio

• Rule: Avoid excessive depth-to-width ratios for narrow slots. An aspect ratio exceeding 20:1 severely restricts dielectric flushing, leading to secondary discharge, degraded dimensional accuracy, and exponential increases in machining time.

Sinker‑EDM Cavity Depth

• Rule: Electrode wear increases progressively with cavity depth in sinker EDM. Dimensional wear compensation allowance is required for deep features.
• Recommendation: For deep cavities, pre-machining (e.g., rough milling via CNC) to remove bulk stock prior to EDM finishing is highly recommended to reduce electrode wear and cycle time.

Micro‑hole Drilling EDM

• Rule: For blind micro-holes, dimensional stability and taper control decrease as hole depth increases. Through-hole EDM drilling provides significantly more stable accuracy and better flushing condition than blind holes.

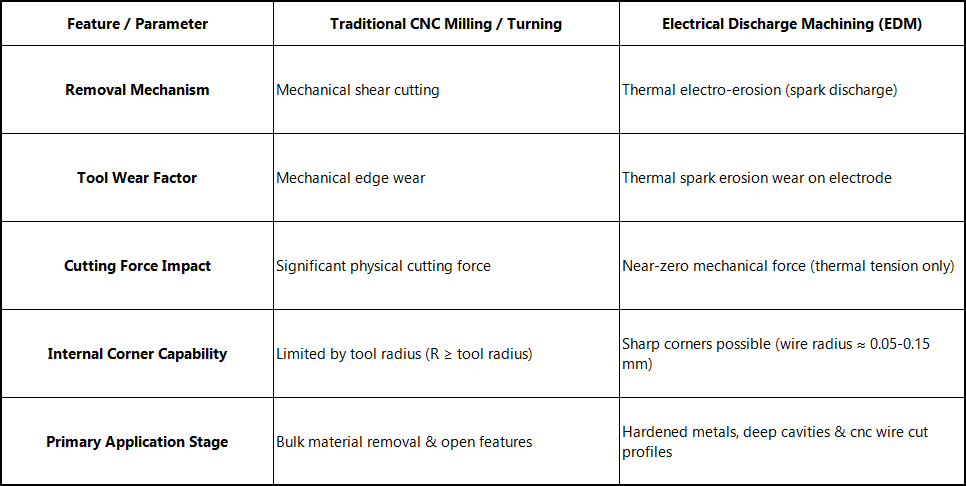

5. Electrical Discharge Machining vs. Traditional CNC Machining

Traditional CNC milling relies on solid cutting tools to mechanically shear metal chips. Mechanical tool wear is present, internal sharp corners are limited by tool radii, and thin-walled parts risk mechanical deflection. In contrast, cnc edm relies on thermal spark erosion without physical cutter contact pressure. In modern toolrooms, these technologies are complementary rather than competing: heavy material removal and outer profiles are first handled by high-efficiency CNC milling, after which precision features are finished using a high-precision cnc wire edm unit or sinker machine.

6. File Preparation Requirements(CAD/DFM)

2D DXF/DWG Files

Maintain 1:1 scale. Remove duplicate lines, construction geometry and open contours. Draw target dimensions directly; do not manually compensate discharge gaps — leave gap compensation to manufacturing engineers.

3D STEP/STP/IGES

Models Export complete solid‑part geometry. Do not embed electrode solids inside models. Cloud‑manufacturing‑platform DFM algorithms will identify part features automatically.

Engineering Drawings

Clearly mark tolerance requirements, recast‑layer‑removal requirements, Ra surface roughness, and whether holes are through‑holes or blind holes.

7. EDM Design Checklist

• Confirm that the part material is electrically conductive
• Provide reasonable discharge fillets at internal corners; do not design with theoretical sharp corners
• Ensure that the depth-to-width ratio of slits/deep grooves is within the process tolerance limits
• Clearly specify the removal of the EDM remelted layer for high-fatigue applications
• Prioritize CNC rough machining for deep cavities to reduce the material removal volume required for EDM
• Ensure dimensional tolerances match the actual capabilities of EDM; do not set tolerances that exceed process limits
• Ensure dimensions are completely consistent across drawings, DXF, and STEP files
